Belsufe S558-5999-W2-F 10/100BASE-TX Ethernet Isolation Transformer

Name: Belsufe S5585999W2F 10100BASETX Ethernet Isolation Transformer
Brand: LINK-PP
Price: 0.06 USD

Brand Name : LINK-PP

Model Number : S558-5999-W2-F

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Pulse PN : S558-5999-W2-F

Made In China : SM-LPXXXXNL

Family : Fast Ethernet Transformer

Port : SMD Single Port

Pins : 16 Pins

Samples : Free Available

Archivi Disponibili : PDF/3D/ISG/Stp/Step/Datasheet

Contact Now

Belsufe S558-5999-W2-F 10/100BASE-TX Ethernet Isolation Transformer

S558-5999-W2-F

Trader Part Number

S558-5999-W2-F

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPXXXXNL

Manufacturer

LINK-PP China

Description

10/100M Transformer Modules

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

2,000 PCS or 4 weeks

S558-5999-W2-F Product Features:
ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(%%P3%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL:
350uH MIN @ 100KHz 0.1V
3.Insertion Loss:
-1.1dB MAX @ 1-100MHz
4.Return Loss:
-16dB MIN @ 1-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
5.Cross talk:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6.Common Mode Rejection:
-30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
7.Hipot Test:1500Vrms

Belsufe S558-5999-W2-F 10/100BASE-TX Ethernet Isolation Transformer

Product Tags:

10/100base-t magnetics

ethernet transformer

China Belsufe S558-5999-W2-F 10/100BASE-TX Ethernet Isolation Transformer wholesale

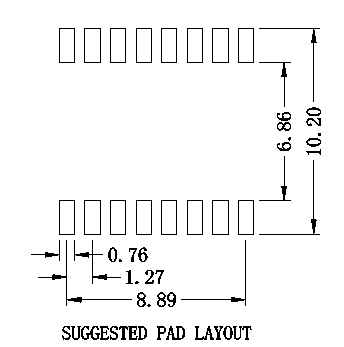

Belsufe S558-5999-W2-F 10/100BASE-TX Ethernet Isolation Transformer Images
