XFATM9-CLYG1-4MS Tab-Down Rj45 Modular Plug Cross LPJ4012GDNL Networking
1. 10 / 100 BASE-T Rj45 Modular Jack
2. PCB Mounting Orientation : Through Hole
3. PCB Tail Length : 3.50±0.50mm
4. Connector Style : Jack
5. XFATM9-CLYG1-4MS Cross LPJ4012GDNL
6. Manufactured Under Strict Controls
| LINK-PP Part Number | LPJ4012GDNL |
| Designing Model | XFATM9-CLYG1-4MS |
| Application-Lan | ETHERNET(NoN PoE) |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| LED Option | YELLOW / GREEN |
| Latch | TAB DOWN |
| Number of Ports | 1X1 |
| PCB Mount Angle | SIDE ENTRY |
| Package Height (mm) | 13.30 |
| Package Length (mm) | 21.25 |
| Package Width (mm) | 15.93 |
| Shield EMI Tabs | WITH |
| Speed | 10/100 BASE-T |
| Temperature | -40 TO 85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |

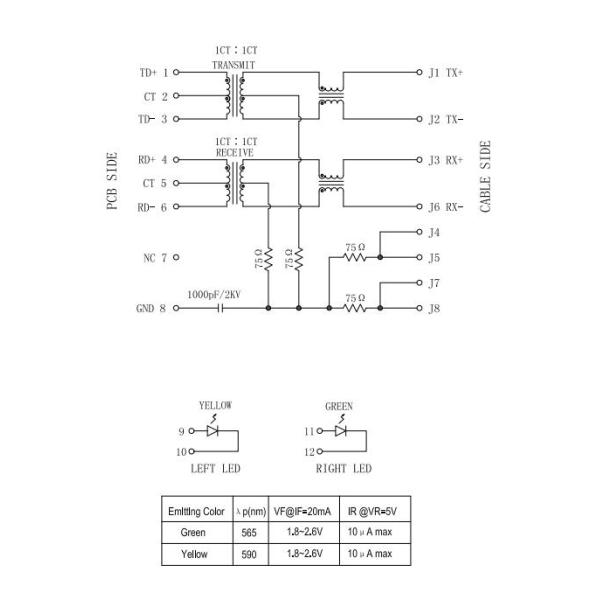

ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(%%P2%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@ 100KHz/0.1V 8mA DC Bias
3.Insertion Loss:
1.0-100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
1-30MHz: -18 30-60MHz:-15
60-80MHz: -12 80-100MHz:-10
5.Cross talk(dB MIN):
30MHz: -40 60MHz: -35
100MHz:-30
6.Common Mode Rejection(dB MIN):
30MHz: -40 60MHz: -35
100MHz:-30
7.Hipot Test: 1500Vrms
8.Operating Temperature Range: -40℃ TO 85℃
NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
3.Wave solder tip temperature: 265℃ Max,5 Sec Max.
